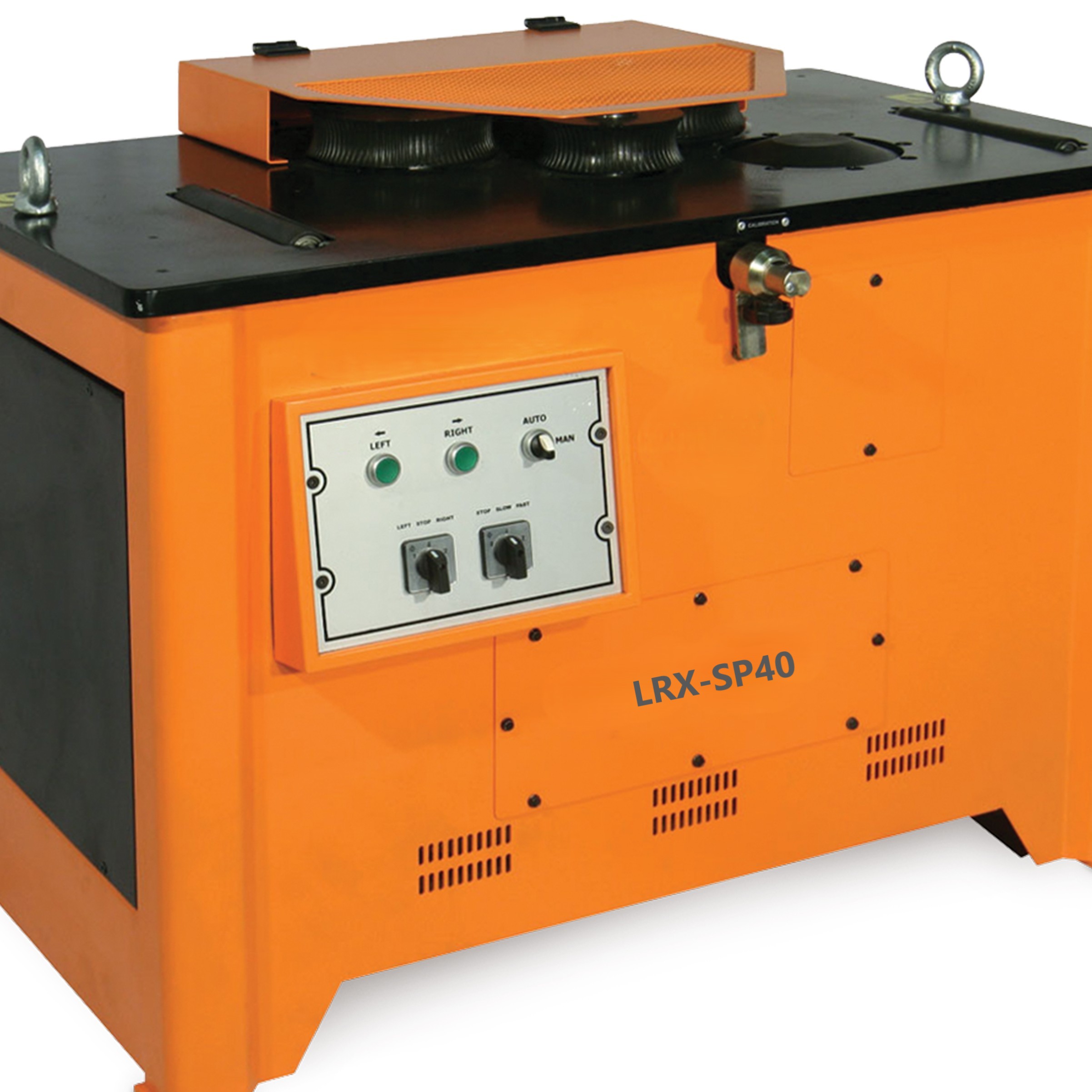

🔶LXR-SP40 – Spiral / Ring / Hoop Bending Machine (Ø40 mm)
Rebar Processing – LuxSense Machinery
🔶 Product Overview
The LXR-SP40 is an advanced spiral and ring bending machine designed to process reinforcement bars up to Ø40 mm. Built for heavy structural works, tunnel segments, bored piles and large-diameter cages, it offers high precision, adjustable pitch and robust durability for demanding industrial tasks.
Global naming: Spiral Bender, Ring Bender, Hoop Bender, Circular Bar Bender, Helix Bender.
🔶 Applications

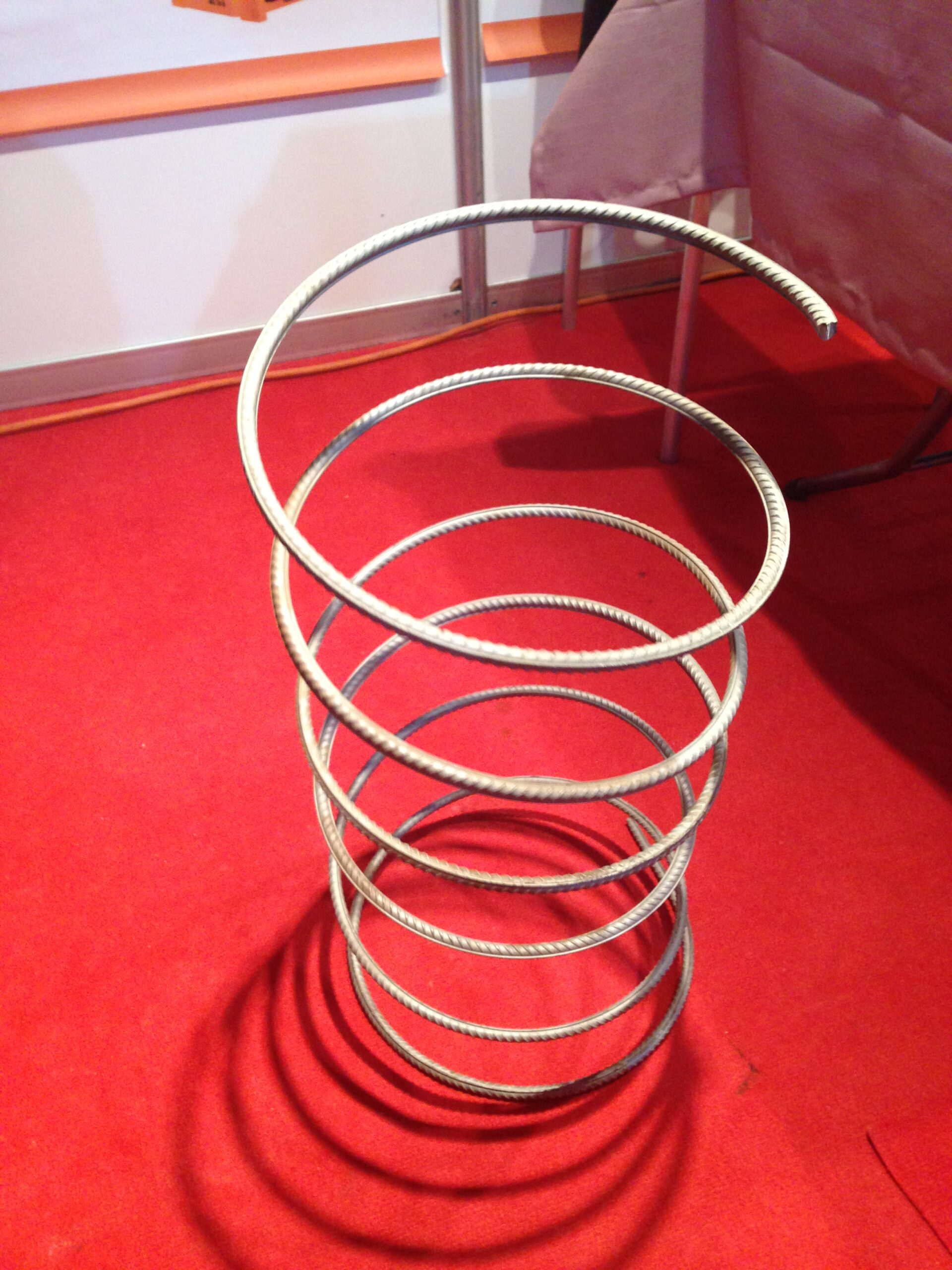

Production of spiral cages, rings and hoops for tunnels, bored piles and large foundations.
On-site or factory use for large-scale reinforcement fabrication.
Export-oriented projects requiring heavy-duty, high capacity spiral bending machines.
🔶 Why Choose the LuxSense LXR-SP40?
Combines Turkish manufacturing quality with export-ready global naming and performance.
Built for durability, high throughput and minimal maintenance—aligning with your brand values of reliability, quality and sustainability.
Fits well in your global strategy targeting export markets such as Greece, Bulgaria, Poland, Romania and Australia.
LXR-SP40 – Spiral / Ring / Hoop Bending Machine (Ø36 mm)
🔶 Key Features
-
-
Capable of bending Ø40 mm bars into spiral cages, rings and hoops for major structural reinforcement.
-
Adjustable ring/spiral spacing and minimum loop diameter (~270 mm) for flexible production.
-
Heavy-duty mechanical power transmission system for consistent high-speed bending.
-
Suitable for foundations, tunnels, bored piles and large-scale reinforcement cages where diameter and speed matter.
-
Dual-direction bending for operational flexibility (left & right).
-
Solid steel frame, electrostatic powder coating and job-site corrosion protection
-
-
Minimum spiral diameter approx. 270 mm for tight circular cages.
| Motor Power (kW) | Min. Bending Ø(mm) | Voltage (V) | Weight (kg) | Dimensions (W-L-H) |
|---|---|---|---|---|
| 3 kW | 270 mm | 380 V | 477 kg | 87 ⁄ 119 ⁄ 86 cm |
| Steel Grade | Single Bar (1Ø) |
|---|---|
| 45 kg/mm² | Ø36 × 1 |
| 65 kg/mm² | Ø32 × 1 |
| 85 kg/mm² | Ø28 × 1 |
Safe Delivery via Sea and Road
To provide the best service to our customers, we offer secure and timely deliveries through sea and road shipping options. Whether you are ordering domestically or internationally, we ensure your products reach you safely and on time by partnering with professional shipping companies.
Sea freight is ideal for large shipments and international deliveries, offering an economical and reliable transportation solution.
Road freight, on the other hand, provides flexible scheduling and doorstep delivery, making it a preferred option for many of our customers.
You can place your orders with confidence, and track every step of the delivery process with us.
