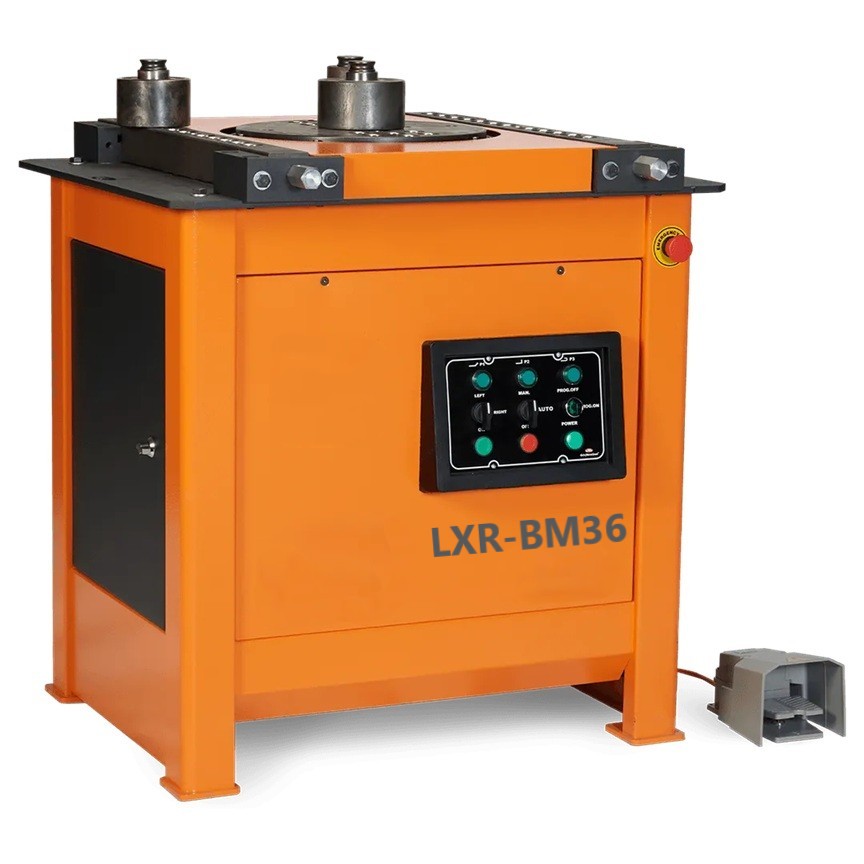

LXR-BM36 – Bar Bending Machine (Ø36 mm)
🔶 Key Features
-
Bends left and right for full operational flexibility.
-
Mechanical and electrical automation system for precise and repeatable bending.
-
Planetary gearbox design for high torque and long-term reliability.
-
Digital display option with memory for up to 9 different bending programs.
-
Sturdy structural design ensuring durability under site conditions.
-
Compact dimensions make it suitable for both on-site and small-to-mid workshop use.
| kW / HP | RPM | Disc Diameter | Voltage | Oil Type | Weight | Dimensions |
|---|---|---|---|---|---|---|
| 3 kW | 8.5 rpm | Ø 322 mm | 380 V / 50 Hz | SAE 40 | 285 kg | 780 × 870 × 890 mm |
| Steel Grade | Single Bar (1Ø) | Double Bars (2Ø) | Multiple Bars |
|---|---|---|---|
| 45 kg/mm² | Ø36 × 1 | Ø22 × 2 | Ø12 × 3 / Ø10 × 6 |
| 65 kg/mm² | Ø32 × 1 | Ø20 × 2 | Ø16 × 3 / Ø10 × 5 |
| 85 kg/mm² | Ø28 × 1 | Ø16 × 2 | Ø12 × 4 / Ø10 × 5 |
🔶 LXR-BM36 – Bar Bending Machine (Ø36 mm)
Rebar Processing – LuxSense Machinery
🔶Product Overview
LXR-BM36 is an industrial-grade bar bending machine engineered for demanding rebar processing applications. With a robust 3 kW drive system, planetary gearbox, and premium finishing, this machine delivers consistent bending results for Ø 24 mm to Ø 36 mm reinforcing steel under high-stress environments.
🔶 Application Areas
Ideal for:
-
-
On-site bending of reinforcement bars for beams, columns, foundations.
-
Mid-scale rebar processing workshops.
-
Construction projects requiring high accuracy and fast turnaround times.
-
🔶 Why Choose LuxSense Machinery?
-
European-standard quality
-
Strong technical support
-
Reliable spare-part availability
-
Fast international shipping
-
Premium performance with competitive pricing
Safe Delivery via Sea and Road
To provide the best service to our customers, we offer secure and timely deliveries through sea and road shipping options. Whether you are ordering domestically or internationally, we ensure your products reach you safely and on time by partnering with professional shipping companies.
Sea freight is ideal for large shipments and international deliveries, offering an economical and reliable transportation solution.
Road freight, on the other hand, provides flexible scheduling and doorstep delivery, making it a preferred option for many of our customers.
You can place your orders with confidence, and track every step of the delivery process with us.
