LXR-BM26 – Bar Bending Machine (Ø26 mm)
🔶 Key Features
-
Bending capacity up to Ø26 mm for a wide range of construction reinforcement applications.
-
Dual-direction bending (left & right) enabling maximum operational flexibility.
-
Heavy-duty planetary gearbox, ensuring stable torque and long service life.
-
Compact, low-vibration structure, ideal for site-level installation and limited spaces.
-
User-friendly control panel with quick switching between manual and automatic modes.
-

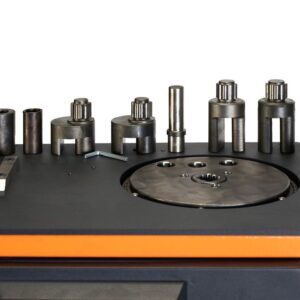

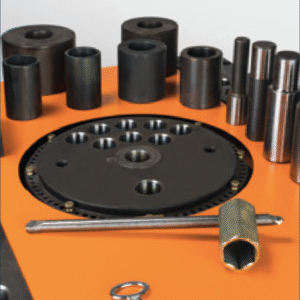

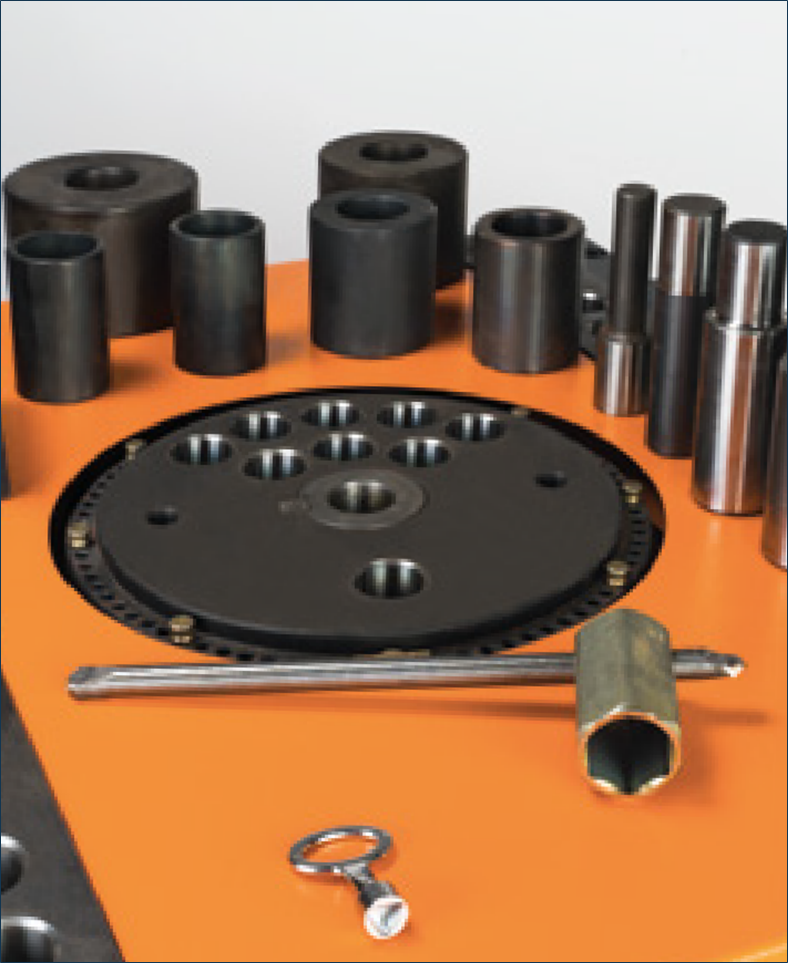

Durable bending table and pin system ensuring precise angle repeatability.
-
Robust steel body engineered for harsh construction environments and reduced maintenance needs.
🔶 Technical Specifications
| kW / HP | RPM | Disc Diameter | Voltage | Gearbox Oil | Weight | Dimensions |
|---|---|---|---|---|---|---|
| 2.2 kW / 3 HP | 8.5 rpm | Ø 268 mm | 380V / 50Hz (3-Phase) | 2 lt | 175 kg | 72 × 77 × 87 cm |
| Steel Grade | Single Bar (1Ø) | Double Bars (2Ø) | Multiple Bars |
|---|---|---|---|
| 45 kg/mm² | Ø26 × 1 | Ø16 × 2 | Ø12 × 3 / Ø10 × 6 |
| 65 kg/mm² | Ø24 × 1 | Ø22 × 2 | Ø14 × 3 / Ø8 × 5 |
| 85 kg/mm² | Ø20 × 1 | Ø12 × 5 | Ø8 × 6 / Ø6 × 6 |
🟧 LXR-BM26 – Rebar Bending Machine (Ø up to 26 mm)
Rebar Processing Series – LuxSense Machinery
🔶 Product Overview
The LXR-BM26 is a compact and high-performance rebar bending machine designed for precise and consistent bending of reinforcement bars up to Ø26 mm.
Equipped with a high-torque bending gearbox, reinforced double-arm bending system and high repeatability angle control, it delivers exceptional accuracy and durability in daily operation—ideal for contractors and fabrication workshops requiring performance beyond standard site benders.
🔶 Applications
-
Bending rebar for beams, columns, slabs and footings
-
On-site reinforcement preparation
-
Small and mid-size fabrication workshops
-
Fast production of repetitive bends (90°, 135°, 180°)
-
Ideal entry-capacity machine with professional-grade precision
🔶 Why Choose the LXR-BM26?
-
Premium bending accuracy comparable to internationally known brands
-
Strong structural design ensuring long machine life
-
High repeatability for mass-production bending jobs
-
Compact yet powerful—perfect balance for construction companies and workshops
-
Aligned with LuxSense values: quality, reliability, sustainability
