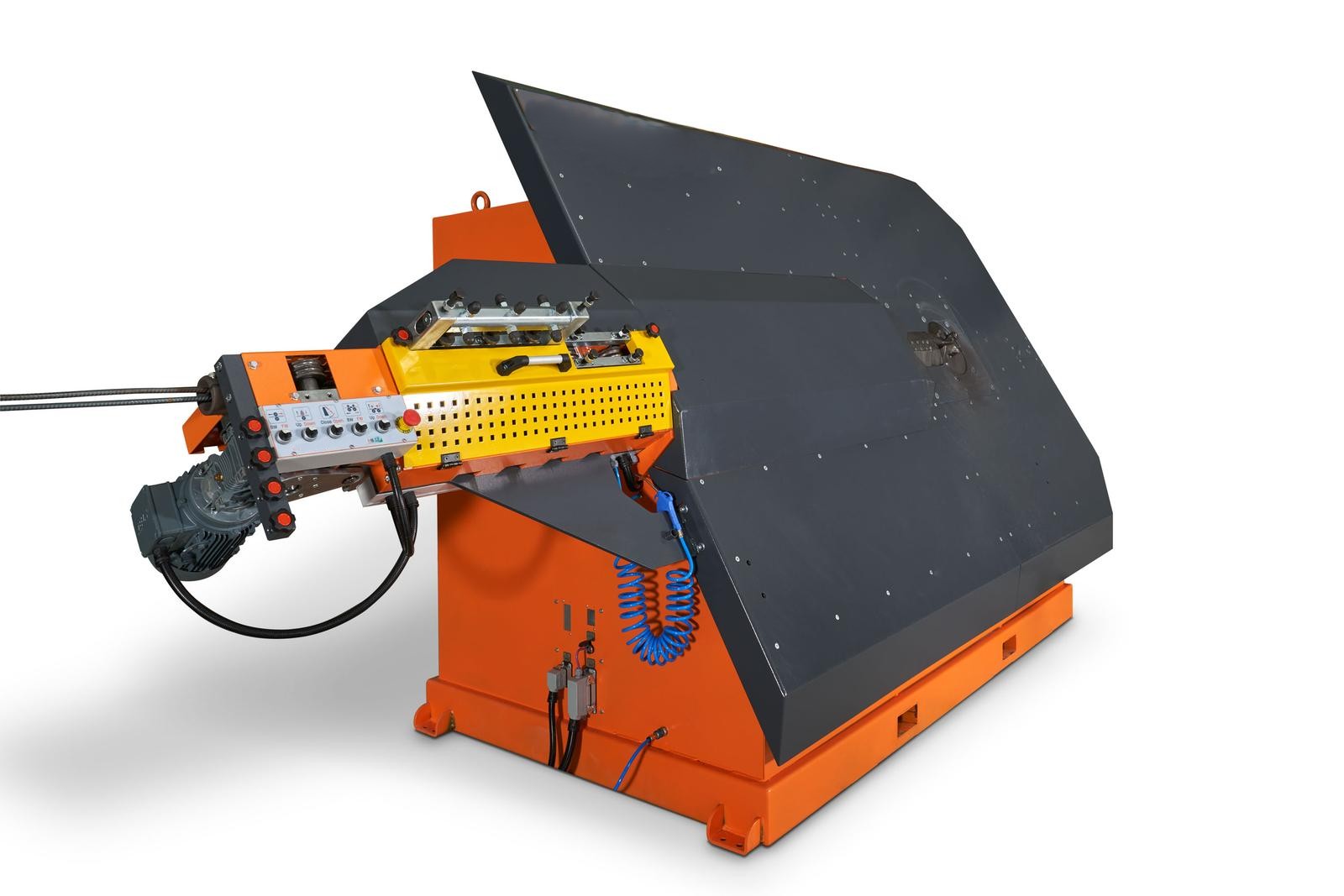

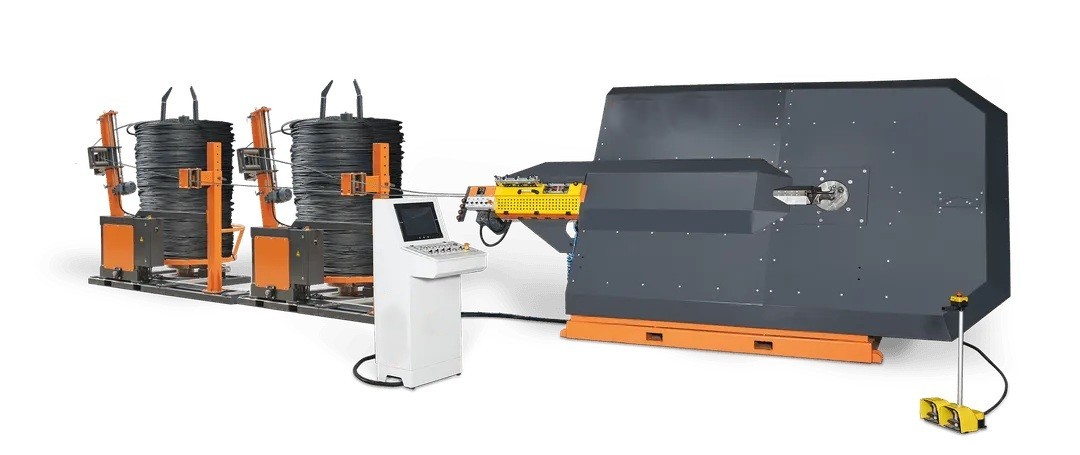

LXR- ARS LINE12 – Automatic CNC Stirrup / Binder Bending Machine (Ø6–12 mm Coil-Fed)
🔶 Key Features
-
Automatic coil feeding system for continuous operation and reduced labor cost.
-
Dual-strand capability: 2×6 mm / 2×8 mm or 1×12 mm productivity mode.
-
High-precision servo motors ensure excellent accuracy in both length and bending angles.
-
Touch-screen HMI panel with memory for hundreds of stirrup designs and shape programs.
-
High feeding speed (up to 120 m/min) supporting mass production.
-

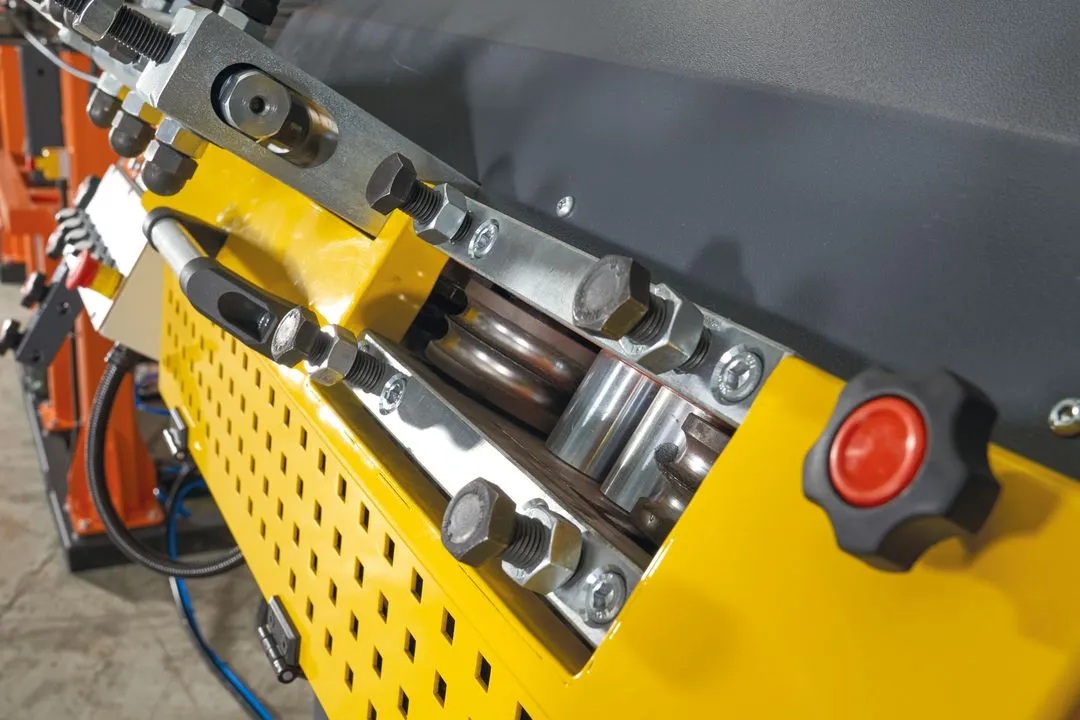

Automatic straightening for consistent stirrup quality.
-
Heavy-duty frame suitable for 24/7 industrial operation.
-
Export-ready CE-compatible control and electrical components.
| SPECIFICATION | VALUE |
|---|---|
| Single Strand Diameter | Ø6–12 mm (#2–#4) |
| Double Strand Capacity | 2×6 mm / 2×8 mm / 1×12 mm |
| Feeding Speed | Up to 120 m/min |
| Bending Motor Power | 11 kW high-torque servo |

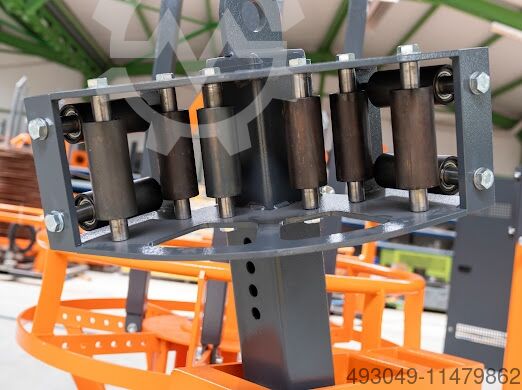

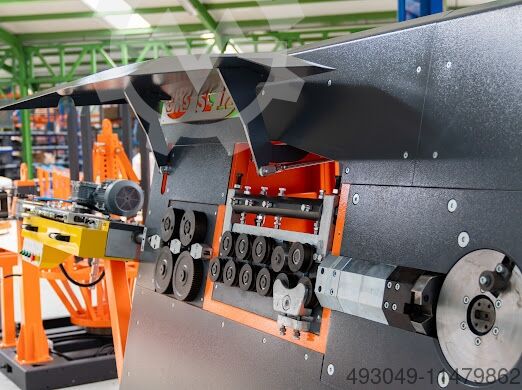

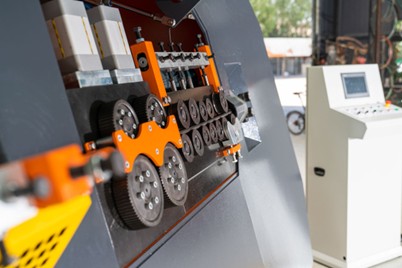

| Straightening System | Automatic multi-roller system |
| Driving System | Pneumatic |
| Driving Motor Power | Servo Motor 11 kW / 15 HP |
| Driving Speed | 120 m/min (394 ft/min) |
| Bending Motor | Servo Motor 4 kW / 5.5 HP |
| Bending Speed | 1250° / second |
| Cutting Motor Power | AC Motor 3 kW / 4.02 HP |
| Length Tolerance | ±1–2 mm |
| Bending Tolerance | ±1° |
| Compressor Needed | Yes (8–10 bar) |
| Working Pressure | 116–145 PSI |
| Voltage | 380V / 3-phase (50–60Hz) |
| Driving Gearbox | Industrial Type |
| Control Panel | 15-inch HMI screen |
| Machine Dimensions | 1710 × 5000 × 2340 mm |
| Machine Weight | ~3000 kg |
| Decoiler Weight | ~1000 kg |
🔶 ARS LINE 12 – Automatic CNC Stirrup Bending Machine (Ø6–12 mm Coil-Fed)
Rebar Processing Solutions – LuxSense Machinery
🔶 Product Overview
The ARS LINE 12 Automatic Stirrup Bender is a high-performance CNC machine designed for coil-fed rebar processing between Ø6–12 mm. Featuring servo-driven feeding, high-speed bending, and an intelligent touch-screen control system, this model delivers maximum productivity for factories producing stirrups, ties, and custom reinforcement shapes.
Its fully automatic workflow ensures continuous, high-volume production, making it ideal for companies aiming to reduce labor costs while increasing efficiency.
SEO Keywords Used:
automatic stirrup bender, CNC rebar bending machine, coil-fed stirrup machine, automatic binder bender, stirrup production line.
🔶 Applications
-
Mass production of stirrups, ties, and reinforcement shapes
-
Prefabrication plants requiring high-speed rebar shaping
-
Industrial steel processing facilities with repetitive shape production
-
Construction companies aiming for automation and precision in reinforcement work
🔶 Why Choose LuxSense ARS LINE 12?
-
Fully automated system ensuring high-speed and accurate stirrup production
-
Consistent quality suitable for European and Middle Eastern export standards
-
Strong mechanical design for long-term industrial performance
-
Minimizes labor cost while maximizing daily output
-
Supports LuxSense core values: quality, reliability, innovation, and sustainability
-
Expands your portfolio with a premium CNC coil-fed bending line
