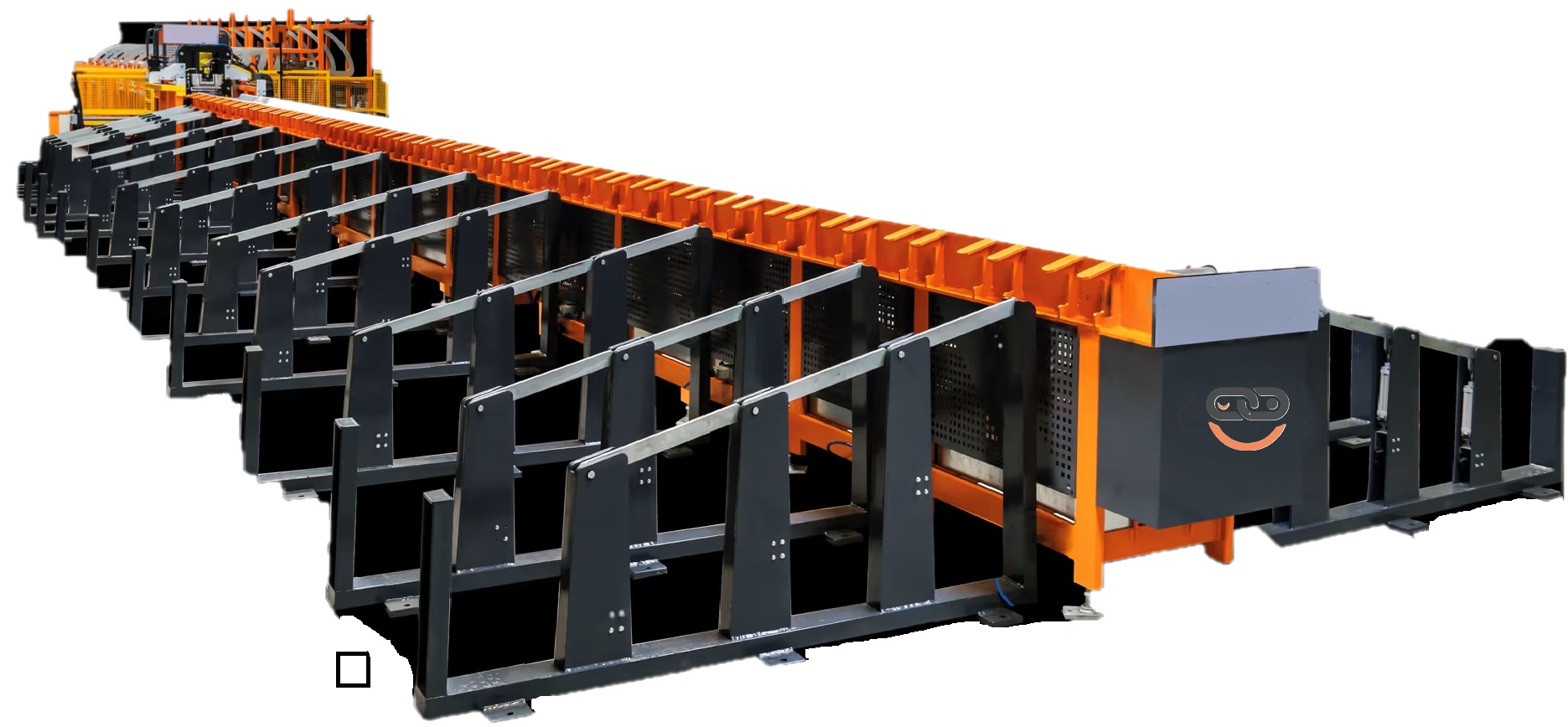

Full view of the ARC LINE 55 automated hydraulic rebar cutting machine
ARC LINE 55 – Automatic Rebar Cutting Machine Overview
ARC LINE 55 – Industrial Hydraulic Cutting System
ARC LINE 55 – Servo-Driven Measurement System
ARC LINE 55 – Industrial Touchscreen Control Panel
Robust steel cutting section of ARC LINE 55 line
Automatic steel bar feeding system of ARC LINE 55
Full view of the ARC LINE 55 automated hydraulic rebar cutting machine
Multi-roller straightening and guiding unit of ARC LINE 55 rebar line
Click to enlarge
Full view of the ARC LINE 55 automated hydraulic rebar cutting machine
ARC LINE 55 – Automatic Rebar Cutting Machine Overview
ARC LINE 55 – Industrial Hydraulic Cutting System
ARC LINE 55 – Servo-Driven Measurement System
ARC LINE 55 – Industrial Touchscreen Control Panel
Robust steel cutting section of ARC LINE 55 line
Automatic steel bar feeding system of ARC LINE 55
Full view of the ARC LINE 55 automated hydraulic rebar cutting machine
Multi-roller straightening and guiding unit of ARC LINE 55 rebar line
LXR-HC26 Hydraulic Rebar Cutting Machine | Ø26 mm Rebar Cutter | LuxSense
LXR-HC26 – Hydraulic Rebar Cutting Machine Ø26 mm
Back to products
ARB LINE 45 – CNC Control Panel
LXR-ARB-LINE 45 — Automatic Rebar Bending Line (Ø up to 45 mm)

LXR-ARC-LINE 55 — Automatic Rebar Cutting Line (Ø up to 55 mm)

🔶 Key Features

  • Fully automatic shearline system integrating feeding, measuring, cutting and sorting.

  • High-capacity hydraulic shear, capable of cutting Ø55 mm reinforcement with stable power.

  • Servo-controlled measuring unit ensuring ±3 mm accuracy on every cut.

  • Touch-screen industrial HMI for multi-length programming and automatic production cycles.

  • Automatic bar alignment & feeding, reducing manual handling to near zero.

  • Optimised sorting hoppers and conveyors for fast material output.

  • Heavy-duty chassis engineered for continuous 24/7 factory operation.

  • Low waste cutting cycles, designed to minimise off-cuts and raw material loss.

  • Modular design that fits both new factory layouts and existing rebar production lines.

SPECIFICATION VALUE
Model ARC LINE 55 – Automatic Rebar Cutting Line
Max Cutting Diameter Ø55 mm
Cutting Accuracy ±3 mm
Cutting System Industrial hydraulic shear
Measurement System Servo-driven measuring unit
Control Panel 10.1” industrial touchscreen
Voltage 380V / 50–60 Hz
Total Power ~18–20 kW
Hydraulic Pressure Up to 250 bar
Line Weight 15–20 tons (depending on configuration)
Workflow Loading → Feeding → Measuring → Cutting → Sorting → Collection
REBAR DIAMETER 45 KG/MM² STEEL GRADE 65 KG/MM² STEEL GRADE 85 KG/MM² STEEL GRADE
Ø55 mm / #18 1 bar 1 bar 1 bar
Ø40 mm / #14 5 bars 4 bars 4 bars
Ø36 mm / #11 6 bars 5 bars 4 bars
Ø32 mm / #10 7 bars 7 bars 6 bars
Ø28 mm / #9 8 bars 7 bars 7 bars
Ø25 mm / #8 10 bars 9 bars 8 bars
Ø22 mm / #7 11 bars 10 bars 9 bars
Ø20 mm / #6 14 bars 12 bars 11 bars
Ø16 mm 20 bars 18 bars 16 bars
Ø12 mm 30 bars 27 bars 25 bars
Add to wishlist
Category:
Description

🔶LXR-ARC-LINE 55 — Automatic Rebar Cutting Line (Ø up to 55 mm)

Industrial Rebar Processing – LuxSense Machinery

🔶 Product Overview

The LXR-ARC-LINE 55 is a fully integrated industrial rebar cutting plant designed for processing heavy reinforcement bars up to Ø55 mm.
The system brings together automatic feeding, length measurement, hydraulic cutting, optimisation and sorting, delivering a complete factory-grade solution in one compact production line.

Engineered for efficiency, speed and accuracy, ARC-LINE 55 significantly reduces labour costs, improves cutting precision and boosts productivity in high-volume reinforcement plants.

🔶 Applications

  • Rebar factories and steel processing centres

  • Infrastructure reinforcement production

  • Bridge, tunnel, metro and highway projects

  • Heavy construction suppliers producing large-diameter bars

  • Precast factories requiring continuous, accurate cutting cycles

🔶 Why Choose the LXR-ARC-LINE 55?

  • Complete factory-grade automation from a single machine.

  • Designed for extreme durability and precision in industrial environments.

  • Reduces manpower and increases total output capacity.

  • Delivers consistent cutting accuracy and repeatable performance.

  • Strengthens LuxSense’s global positioning with a flagship industrial solution.

  • Perfect for high-potential export markets where automation is essential.
