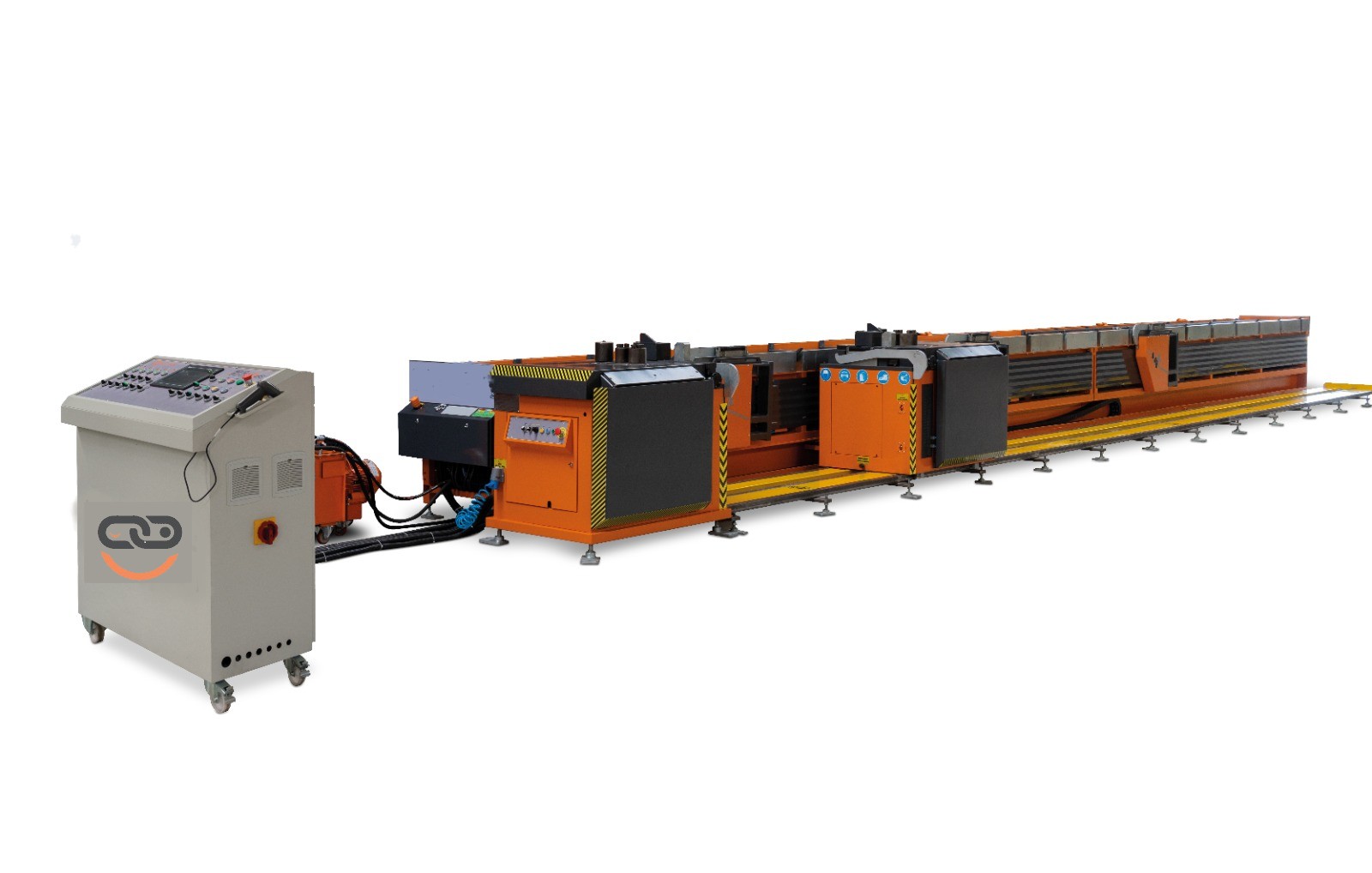

LXR-ARB-LINE 45 — Automatic Rebar Bending Line (Ø up to 45 mm)
🔶 Key Features
-
Fully automatic bending line combining feeding, measuring and bending operations.
-
Double-arm bending system enabling complex shapes, large radius bends and heavy-diameter bars.
-
Servo-controlled length measurement providing high repeatable accuracy.
-
Automatic feeding and alignment, minimizing operator involvement.
-
High-torque bending motor designed for Ø45 mm reinforcement.
-
360° rotation capability for multi-directional bending cycles.
-
Touch-screen industrial HMI with program memory for thousands of shapes.
-
Fast changeover between job types, runtimes and bar diameters.
-
Robust, factory-grade chassis suitable for long-term continuous operation.
-
Low maintenance hydraulic and mechanical system providing stability and long service life.
| SPECIFICATION | VALUE |
|---|---|
| Model | ARB LINE 45 – Automatic Rebar Bending Line |
| Single Bar Diameter Range | Ø10–Ø45 mm |
| Bending System | Double-arm servo + hydraulic hybrid |
| Feeding System | Automatic bar feeding and alignment |
| Measurement System | Precision servo measuring unit |
| Rotation Capability | 360° multi-directional bending head |
| Control Panel | 10.1″ industrial touch-screen HMI |
| Power Supply | 380 V / 50–60 Hz / 3-phase |
| Installed Power | ~18 kW (depending on configuration) |
| Line Layout | Feeding → Measuring → Bending → Sorting |
| Machine Dimensions (L × W × H) | Approx. 1710 × 5000 × 2340 mm |
| Machine Weight | ~3000 kg |
| Rebar Diameter | 45 kg/mm² Steel Grade | 65 kg/mm² Steel Grade | 85 kg/mm² Steel Grade |
|---|---|---|---|
| Ø42 mm / #14 | 1 bar | 1 bar | – |
| Ø36 mm / #11 | 1 bar | 1 bar | 1 bar |
| Ø30 mm / #10 | 2 bars | 1 bar | 1 bar |
| Ø24 mm / #8 | 3 bars | 3 bars | 2 bars |
| Ø20 mm / #6 | 4 bars | 4 bars | 3 bars |
🔶LXR-ARB-LINE 45 — Automatic Rebar Bending Line (Ø up to 45 mm)
Industrial Rebar Processing – LuxSense Machinery
🔶 Product Overview
The LXR-ARB-LINE 45 is a high-performance automatic rebar bending line designed for factories and industrial reinforcement centers handling bars up to Ø45 mm.
This fully integrated system combines automatic feeding, measuring, bending, rotating, double-arm operation and sorting into one continuous production line.
Developed for large-scale reinforcement processing, ARB-LINE 45 eliminates manual workload, increases output capacity, and provides consistent bending accuracy in demanding 24/7 factory environments.
The system is engineered to meet international requirements for speed, precision and structural durability.
🔶 Applications
-
Industrial rebar factories
-
Large construction steel processing centers
-
Precast concrete plants
-
Infrastructure reinforcement suppliers
-
Projects requiring repetitive high-precision bending cycles
-
Bridge, tunnel, metro, highway reinforcement production
🔶 Why Choose the LXR-ARB-LINE 45?
-
Strong family alignment with ARC-ARB-LINE series → full cutting + bending plant solution
-
Ideal for international markets demanding fully automatic bending lines
-
Highly reliable, precise and durable for factory-level production
-
Significantly reduces labour cost and increases total capacity
-
Strengthens LuxSense’s product portfolio with a flagship bending line
-
Premium engineering quality aligned with global manufacturing expectations
