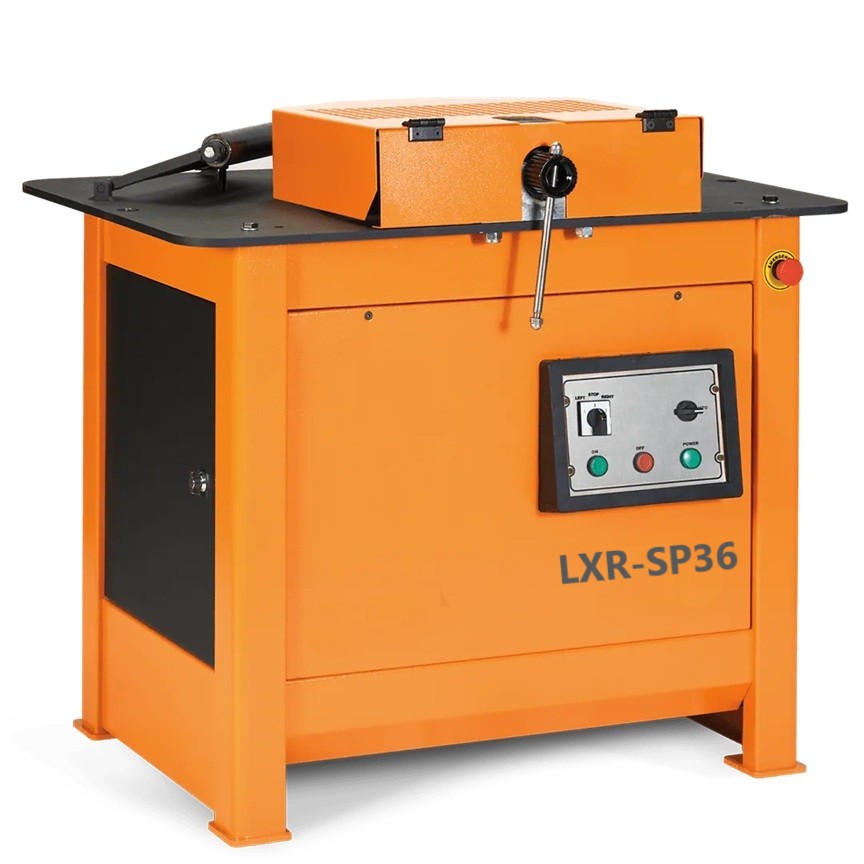

🔶LXR-SP36 – Spiral / Ring / Hoop Bending Machine (Ø36 mm)
Rebar Processing – LuxSense Machinery
🔶 Product Overview
The LXR-SP36 is a high-capacity spiral/ring bending machine designed for reinforcement bars up to Ø 36 mm. Thanks to its adjustable spiral pitch, mechanical power-train and robust construction, it is perfectly suited for large-scale structural works such as bored piles, tunnel rings, circular cages and heavy reinforcement loops.
Global naming: Spiral Bender, Ring Bender, Hoop Bender, Circular Bar Bending Machine, Tie-Bar Ring Bender.
🔶 Applications
Ideal for:
Spiral cages and circular reinforcements for tunnels, bored piles and bridge sub-structures.
High-volume fabrication of rings and hoops for large structural elements.
Export-markets seeking Turkish-made heavy-duty spiral bending machinery.
🔶 Why Choose the LuxSense LXR-SP36?
Engineered for exacting spiral and ring bending operations, rather than generic bar bending.
Global-ready naming and export focus align with your strategy.
Robust build, precise repeatability, long service life—aligned with your core values of reliability, quality and sustainability.
LXR-SP36 – Spiral / Ring / Hoop Bending Machine (Ø28 mm)
🔶 Key Features
-
-
-
Capable of spiral, ring, circle and half-circle bending operations with bar diameter up to Ø36 mm.
-
Adjustable ring/hook spacing (spiral pitch) allowing flexibility in design and production.
-
Dual direction bending (left & right) via foot pedal for efficient operation.
-
Heavy-duty mechanical power train for continuous site or factory operation.
-
Durable frame and corrosion-resistant finish tailored for harsh environments.
-
Minimum spiral diameter approx. 200 mm for tight circular cages
-
-
| Motor Power (kW) | Min. Spiral Dia. (mm) | Voltage (V) | Weight (kg) | Dimensions (W-L-H) |
|---|---|---|---|---|
| 3 kW | 200 mm | 380 V | 300 kg | 76 × 105 × 98 cm |
| Steel Grade | Single Bar (1Ø) |
|---|---|
| 45 kg/mm² | Ø 28 × 1 |
| 65 kg/mm² | Ø 24 × 1 |
| 85 kg/mm² | Ø 20 × 1 |
